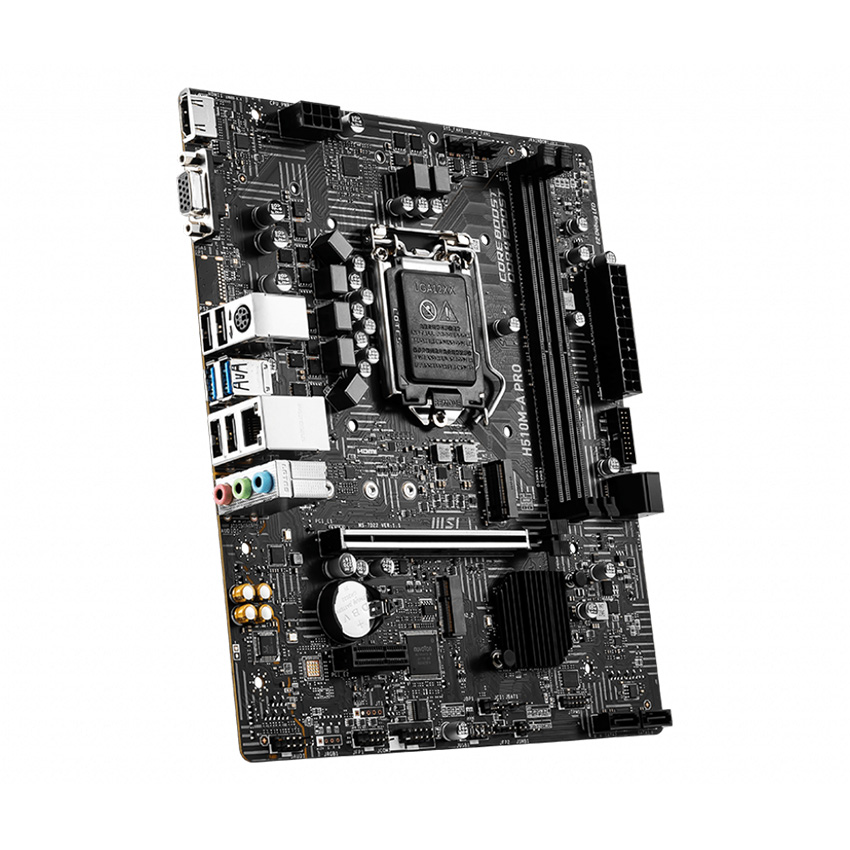

Mainboard MSI H510M-A PRO

Mã SP: Mainboard MSI H510M-A PRO

1,550,000đ

Mô tả sản phẩm

Chipset: Intel H510 Socket: LGA 1200 Kích thước: M-ATX Số khe RAM: 2

Tình trạng: Còn hàng

Bảo hành: 36t

GỌI NGAY 0981457777 Giao hàng tận nơi nhanh chóng, thuận tiện

CHÍNH SÁCH MUA HÀNG

Bảo hành chính hãng Đổi mới trong 60 ngày đầu lỗi do nhà sản xuất Bảo hành tận nơi siêu tốc Trả góp lãi suất 0% Giao hàng toàn quốc

HOTLINE HỖ TRỢ

Tư vấn bán hàng: Ms Thơm : 098.145.7777 Tư vấn bán hàng: Mr Hải : 0971.35.35.35 Kinh doanh PC - Laptop: Ms Thơm: 098.145.7777 Kinh doanh phòng net: 078.355.9999 Hỗ trợ kỹ thuật: Mr Tùng : 0989.490.818 Hỗ trợ kỹ thuật: 0985.15.25.35

Sản phẩm tương tự

Mã SP: Mainboard MSI B760M GAMING PLUS WIFI DDR4

Mainboard MSI B760M GAMING PLUS WIFI DDR4

3,480,000đ

Còn hàng

Mã SP: MAIN BOARD HUANANZHI X99-TFQ

MAIN BOARD HUANANZHI X99-TFQ

2,200,000đ

Còn hàng

Mã SP: Mainboard Asus PRIME Z790M PLUS CSM DDR5

Mainboard Asus PRIME Z790M PLUS CSM DDR5

4,400,000đ

Còn hàng

Mã SP: Z390 AORUS ELITE

GIGABYTE Z390 AORUS ELITE

5,350,000đ

Còn hàng

Mã SP: Z590-PLUS WIFI

ASUS TUF GAMING Z590-PLUS WIFI

5,950,000đ

Còn hàng

Mã SP: Mainboard Gigabyte B560M-AORUS PRO

Mainboard Gigabyte B560M-AORUS PRO

2,750,000đ

Còn hàng

Mã SP: MAINBOARD MSI MAG B660M MORTAR DDR4

MAINBOARD MSI MAG B660M MORTAR DDR4

3,500,000đ

Còn hàng

Mã SP: Mainboard GIGABYTE Z690 GAMING X DDR4

Mainboard GIGABYTE Z690 GAMING X DDR4

5,950,000đ

Còn hàng

Mã SP: MAINBOARD ASUS PRIME B760M-K D4

MAINBOARD ASUS PRIME B760M-K D4

2,490,000đ

Còn hàng

Mã SP: Mainboard HUANANZHI X99-F8D

Mainboard HUANANZHI X99-F8D

3,100,000đ

Còn hàng

Mã SP: Mainboard ASUS TUF GAMING Z690-PLUS WIFI D5(Intel Z690, Socket 1700, ATX, 4 khe RAM DDR5)

Mainboard ASUS TUF GAMING Z690-PLUS WIFI D5(Intel Z690, Socket 1700, ATX, 4 khe RAM DDR5)

7,200,000đ

Còn hàng

Mã SP: Mainboard ASUS PRIME B560M-A

Mainboard ASUS PRIME B560M-A

2,170,000đ

Còn hàng

Đánh giá sản phẩm Mainboard MSI H510M-A PRO

Hãng sản xuất	MSI
Model	H510M PRO
CPU	Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors
Chipset	Intel^® H510 Chipset
Bộ nhớ	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Khe mở rộng	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel^® CPU Support up to PCIe 3.0 for 10th Gen Intel^® CPU 1x PCIe 3.0 x1 slot (From PCH) 1x M.2 slot with E key for WiFi module only(M2_2)
Đồ họa tích hợp	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Lưu trữ	4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) M2_1 slot (From H510 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
USB	Intel^® H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Âm thanh	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Intel^® I219V 1Gbps LAN controller
Kết nối I/O bên trong	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector
Tính năng LED	4x EZ Debug LED 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector

Xem thêm

Hỏi đáp về sản phẩm

Thông số kỹ thuật

Hãng sản xuất	MSI
Model	H510M PRO
CPU	Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors
Chipset	Intel^® H510 Chipset
Bộ nhớ	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Khe mở rộng	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel^® CPU Support up to PCIe 3.0 for 10th Gen Intel^® CPU 1x PCIe 3.0 x1 slot (From PCH) 1x M.2 slot with E key for WiFi module only(M2_2)
Đồ họa tích hợp	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Lưu trữ	4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) M2_1 slot (From H510 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
USB	Intel^® H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Âm thanh	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Intel^® I219V 1Gbps LAN controller
Kết nối I/O bên trong	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector
Tính năng LED	4x EZ Debug LED 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector

Hãng sản xuất	MSI
Model	H510M PRO
CPU	Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors
Chipset	Intel^® H510 Chipset
Bộ nhớ	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Khe mở rộng	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel^® CPU Support up to PCIe 3.0 for 10th Gen Intel^® CPU 1x PCIe 3.0 x1 slot (From PCH) 1x M.2 slot with E key for WiFi module only(M2_2)
Đồ họa tích hợp	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Lưu trữ	4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) M2_1 slot (From H510 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
USB	Intel^® H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Âm thanh	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Intel^® I219V 1Gbps LAN controller
Kết nối I/O bên trong	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector
Tính năng LED	4x EZ Debug LED 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector

Xem thêm thông số
